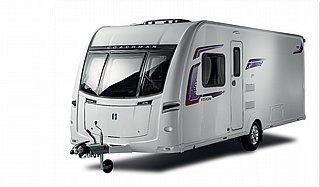

Coachman ACADIA 545

External Features

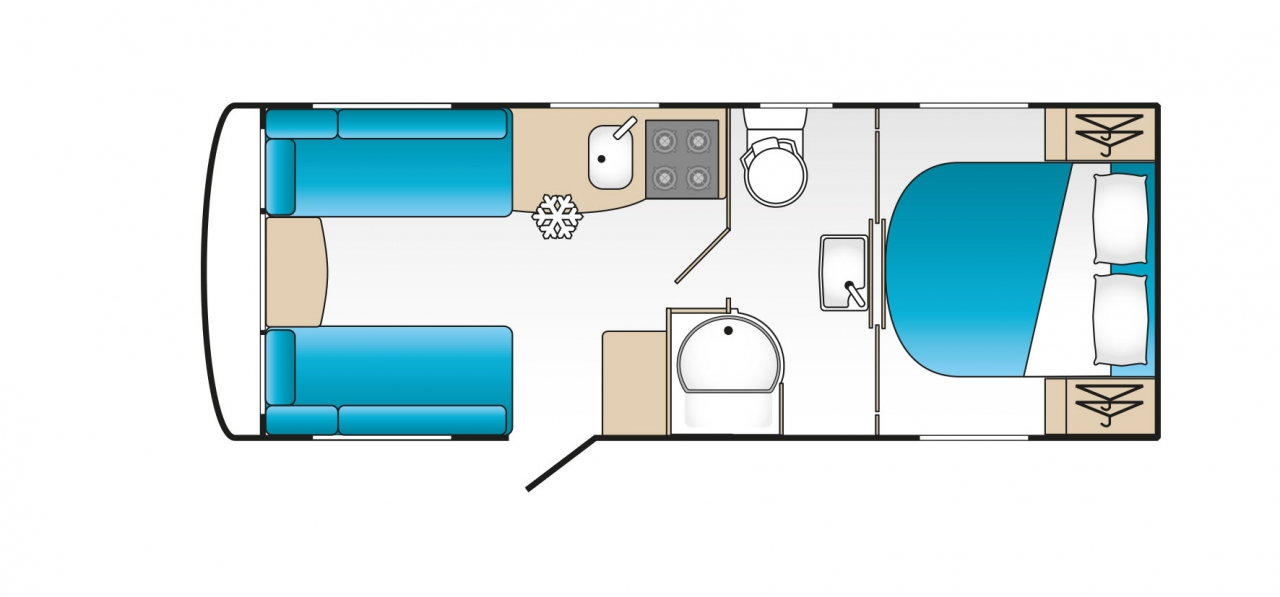

Comprising of 8 models, including the new Vision 545, central washroom with fixed end island bed, and the Vision 630, an impressive 5-berth family caravan with a spacious end bathroom. Now with weights across the range starting at 1296kg (MTPLM), more cars than ever before can now tow a Coachman.

External Features

• • European Whole Vehicle Type Approved (EWVTA)
  • EN1645 Grade 3 classification for heating and insulation - cold chamber tested
  • Overall body width of 2.26m / 7' 5"
  • AL-KO, galvanised steel chassis with Euro axle, overrun device and easy action handbrake
  • Fully bonded aerodynamic exterior bodyshell incorporating renowned specialist BOSTIK chemical bonding adhesives and PU (polyurethane) internal framing
  • Screwless, body coloured, fully bonded awning rail to both sides
  • 25mm sandwich sidewall construction using higher impact resistant 5000 series, 0.6mm thick aluminium, with polystyrene insulation core
  • 25mm sandwich construction roof for added strength and insulation
  • 45mm sandwich construction floor with internal bracing for added strength
  • 13 pin car 'Jaeger' connector
  • Full height, acrylic capped ABS front panel incorporating integral grab handles, 3 opening front windows and gas bottle locker door with 2 locks and gas strut
  • Full height acrylic capped ABS rear panel with high level brake light and light clusters incorporating twin reversing lights and fog lights
  • Body colour step-on hitch cover with tread plates for easy cleaning of front windows
  • Body colour rear light bezel surrounds
  • 10 spoke, Hyper silver 'Falcon' alloy wheels
  • Underslung AL-KO spare wheel carrier complete with steel spare wheel
  • NEW Vision exterior graphics and colours
  • Shock absorbers for smoother towing
  • Double glazed opening windows
  • Dimatec LED awning light
  • Mud flaps
  • Exterior access battery box with mains electric inlet and external satellite and aerial connections
  • One piece exterior door with NEW high security one key locking system, window and blind, moulded inner panel and interior waste bin
  • Plastic entrance step
  • Bulkhead mounted gas regulator for use with butane or propane gas bottles, supplied with flexible hose for propane

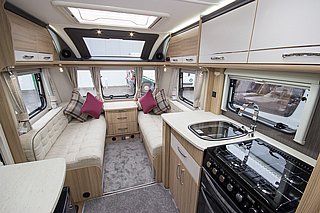

    Interior

    • Internal headroom of 1.95m / 6' 5"
    • Easy clean, Rastrollo 'Soft close' blinds and flyscreens to all opening windows
    • Easy action flyscreen to exterior door
    • ‘Ozio' hypo-allergenic construction soft furnishings throughout all models
    • NEW soft furnishings in 'Pebbles Wrangler/Lewis Natural' design with co-ordinating scatter cushions and sculptured armrests
    • Removable carpet in 'Eggshell' design
    • Wood colour scheme in 'Sand Ruster'
    • Ceiling board in 'Lambourn' design
    • Wall board in 'Noda' design
    • Domestic floor covering in 'French Oak' design
    • NEW contemporary style Locker doors to lounge and bedroom in 'Sand Ruster' and ‘Grey Moves’ design
    • NEW easy access storage cupboard in the caravan entrance (450 and 520)
    • NEW overhead locker profile in ‘graphite’ design with LED halo lighting
    • NEW centre console in 'graphite' soft touch  design with integrated down lighting
    • Chrome, 'Saffron Bow' design furniture handles
    • NEW dovetail joints to drawer units
    • Metal runners to all drawers
    • Colour co-ordinated sockets and switches with black surrounds
    • Easy action aluminium framed sliding front bed make up mechanism
    • NEW Easy action aluminium framed sliding rear double bed make up mechanism in the 570 layout
    • Easy access, aluminium, lift up front seat frames, gas strut supported, with sprung beech lats
    • Front chest of drawers with slide out extending table top
    • Large, lightweight, free standing table with dedicated storage area
    • Seating and bed ventilation boards throughout
    • Removable entrance mat with tray
    • Shelving to lounge overhead lockers
    • Luxury, 'Ozio' hypo allergenic mattresses to all fixed bed models
    • Midi Heki rooflight to front lounge area
    • Aluminium frames to all fixed beds
    • NEW lower height and wider fixed single beds in the 565 layout
    • Mini Heki rooflight over fixed beds (not the 545)

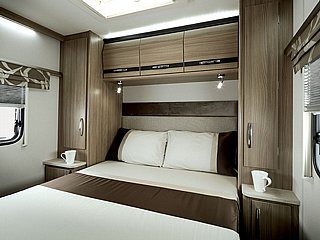

    • Midi Heki rooflight over the fixed bed in the 545 layout

    • Kitchen

    • Mini Heki rooflight to kitchen area
    • Argent stainless steel sink with glass lid and separate drainer
    • NEW flush fitting dedicated housing unit for all 800w, 20litre microwave ovens
    • Concept C90 chromed ceramic kitchen tap
    • NEW kitchen locker doors in 'Grey Moves' design
    • Kitchen splashback in 'Glossy Larice Talvera' design
    • Kitchen laminate in ‘Wraky’ design
    • Dual fuel hob with electronic ignition, glass lid and flame failure device
    • Thetford Caprice oven and separate grill with NEW chrome finish
    • LED under lighting to kitchen lockers
    • Thetford 3000 series 113 litre electronic fridge freezer in piano black (not the 630)
    • NEW Thetford 3000 series 140 litre electronic fridge freezer, with auto energy search, in Piano Black in the 630 layout

      • Bathroom

        • Fully lined shower to all bathrooms
        • NEW Eco Camel Jetstorm Plus shower head
        • Chrome bathroom fittings
        • LED shower light
        • Thetford C260 swivel toilet with electric flush and wheeled waste container
        • NEW large domestic style square shower cubicle with pivot door (450 and 520)
        • NEW wardrobe with integrated laundry bag (450, 520 and 630)
        • Opaque window to all bathrooms
        • Domestic style bathroom door handles (model specific)
        • NEW bathroom chrome tap
        • Belfast style sink to all washrooms

          • Electrical

            • NEW LED reading spot lights with touch controls and night-light setting
            • NEW LED downlighter spot lights
            • 100% Low energy LED lighting throughout
            • Mains inlet with ECLB protection
            • Mains connection lead (25m)
            • 12 volt system (20 Amp) with battery charger and mains transformer
            • 12 volt multi-function control panel for voltmeter, awning light, water pump, 12 volt lights and master switches

              • Audio / Entertainment

                • NEW Pioneer DEH1800ub AM/FM radio/CD/MP3 player - USB, iPod and smartphone compatible
                • Dedicated TV station with 230v, 12v and aerial sockets (2 in selected models)
                • Status 570 TV aerial with integrated AM/FM/DAB reception capability
                • External satellite and TV aerial connection point located inside battery box
                • Internal satellite connection point

                  • Plumbing & Heating

                    • 6kw Truma Combi heating and hot water system
                    • Blown air ducted heating to living, sleeping and washroom areas
                    • Programmable LCD control panel for heating and hot water
                    • Truma Compact inlet with Flojet internal water pump

                    Safety & Security

                    • AL-KO AKS 3004 Stabiliser
                    • Receiver for optional AL-KO Secure wheel lock
                    • Smoke alarm
                    • Carbon monoxide detector
                    • CRIS ID number to windows and chassis
                    • Concealed security data ID chips
                      • • NEW high security one key locking system (supplied with 2 flip keys)
                          •

                          • Technical Specifications

                            Model			545
                            Number of Berths			4
                            Interior Length			5800mm / 19' 0"
                            Shipping Length			7430mm / 24' 5"
                            Overall Width			2260mm / 7' 5"
                            Overall Height ( including T.V Aerial )			2600mm / 8' 6"
                            Maximum Headroom			1955mm / 6' 5"
                            Wheel Rim			5.5J x 14
                            Tyre Size			185 R14 104
                            Tyre Pressure ( bar / psi at quoted MTPLM)			4.5 / 65
                            Bed Sizes - mm Option 1			2 x Single
                            			1540 x 730 ( 5' 1" x 2' 5" )
                            			1 x Double
                            			1810 x 1370 ( 5'11" x 4' 6" )
                            Bed Sizes - mm Option 2			1 x Double
                            			2010 x 1180 (6' 7" x 3' 10" )
                            			1 x Double
                            			1810 x 1370 ( 5' 11" x 4' 6" )
                            M.T.P.L.M			1512kg / 29.8cwt
                            Mass in Running Order			1357kg / 26.7cwt
                            Personal Payload			155kg / 3.1cwt
                            Options Payload			0kg / 0cwt
                            Total / Maximum User Payload			155kg / 3.1cwt
                            Maximum Hitch Weight			100kg / 1.9cwt
                            Awning Size			1020cm
                            Upper MTPLM (Optional weight plate upgrade)			1550 kg
